Description

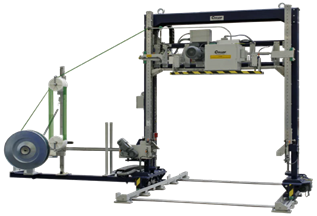

The XF / XP 111 M is a fully automatic strapping machine with top sealer. Designed to strap large numbers of pallets of different sizes vertically with PP or PET band. This system is reliable, easy to use and installs the compact dimensions in confined spaces.
Advantages:
Compact, very little space required.
Easy access to all mechanical components,
to facilitate service and maintenance.
Quick and economical to produce.
Optimal operation per 5.7” touch panel.
›
Function
The load is conveyed into the required strapping position and the strapping cycle is automatically activated.
The strap in the strapping chute moves around the load, is optimally tensioned, sealed and cut off.
The process is repeated depending on the number of cycles per load.
Main specification
Adaptable to conveyor heights from 150 to 950 mm
Strap chute frame according to the principle of the raster technique, suitable for:
Load widths: 300 to 2,000 mm
Load heights: 300 to 3,000 mm
Strapping head movement: 500 mm
Fully electrically driven. No pneumatics required
Advantages:
Strapping head, strap chute and strap
tensioning equaliser are standard. The strap
tension on the load is always optimal.
The strapping head is protected against dirt
and dust with the result, that it is always
fully functional.
If the pallet loads are positioned in the
middle of the conveyor, different-sized
loads can be strapped without difficulty.
The machine drive XPV is available as option.
With this process different, freely definable
strapping positions can be started without
having to use the conveyor. This is necessary,
e. g. in the building industry. The conveying
system often has tightly pre-selected strokes.
Function
XF/XP 111 MVB:
Only the strapping head moves down to the top of package surface. The height difference between the highest and lowest load may not
exceed 550 mm.
XF/XP 111 MKB:
Not only the strapping head, but the entire strap chute moves down onto the pallet load. The pallet load can be strapped even if it is only
210 mm high.
Main specifi cation
Conveyor heights from 110 to 1,000 mm
Strap chute adapted to the width of the
load from 500 to 2,100 mm and heights
from 210 to 2,000 mm
Fully electrically driven.
No pneumatics required
Drive of XPV 111-MVB
