Description

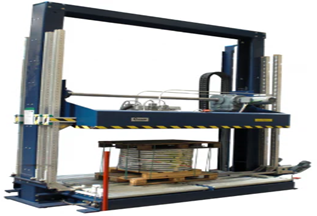

Fully automatic strapping press with vertical strapping The fully automatic and maintenance-friendly XZE series strapping press is fitted with the CFH-1 strapping head. These two combine to ensure fast strap- ping with maximum clamping force. The drive system delivers an exact- ly reproducible press force, accurate package height, adjustable press time and a defined interval pressure. The XZE ensures optimal securing of pallet loads in the corrugated cardboard, printing, paper and paper bag industries.
- For PET strap
- Optimal strapping result thanks to high and continuous tension
- Adjustable compression for the package up to 5,000 N
- Easily integrated into existing conveyor systems
- Pressure freely adjustable via PLC
- Simple and fast operation via colour touch screen
- No compressed air required
| DATA | |
| Strapping | PP/PET |
| Strap width | 5 – 15 mm |
| Strap thickness | 0.5 0.70 . |
| Load widths | 600 — 2,100 mm |
| Load Height | max. 3,000 |
| Tension | up to 5,500 N |
| Control | Siemens PLC S 7 |
| Seal type | Friction Seal |
