Description

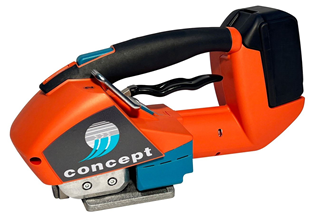

Automatic strapping hand tools with battery: Automatic strapping hand tools with battery: ITA 21/ ITA 22 / ITA 24
Features:
- Manual Operating Mode Easy to be used for operators
- Strap size change without guide replacement
- Digital control Panel
Technical data sheet
| Model | ATI 21 | ATI 22 | ATI 24 |
| Operation mode | auto / semi / manual | auto / semi / manual | auto / semi / manual |
| Tension force range standard | 1100 – 3500 N | 600 – 1500 N | 300-2500N |
| Variable tension speed range | 12 mt/m | 8 mt/m | 10-16 mt/m |
| Weight (incl. battery) | 3.8 Kg – 8.4 lbs | 4.1 Kg – 9 lbs | 4.3 Kg – 9.5 lbs |
| Dimension (L x W x H) | 315 x 140 x 183 mm 12.4” x 5.5” x 7.2” | 316 x 140 x 160 mm 12.4” x 5.5” x 6.3” | 300 x 150 x 160 mm 11.8” x 5.9” x 6.3” |
| Battery / Charger | Battery / Charger | Battery / Charger | Battery / Charger |
| Charger type | |||
| Battery charger voltage | 100 or 110 or 230 V | 100 or 110 or 230 V | 100 or 110 or 230 ¥ |
| Charging time | |||
| Battery type | Bosch Li-Ion 18 V, 2,0 Ah | Bosch Li-lon 18 V, 2,0 Ah | Bosch Li-lon 18 V, 4,0 Ah |
| Cycles per battery charge | |||
| • Low tension | 1100 N | 600 N | 300 N |
| • Medium tension | 400 | 500 | |
| • High tension | 3500 N | 1500 N | 2500 N |
| Strap | Strap | Strap | Strap |
| Strap | PET / PP | PET / PP | PET / PP |
| Width | PP and PET
16mm x 0,8÷1,05mm 19mm x 0,7÷1,27mm |
PP 13/16mm x 0,5÷1.05mm
PET 13/16mm x 0,5÷0.8mm |
PP &PET
13mm / 16mm (1/2” – 5/8”) 0,5mm – 1,05mm (0.019”-0.04” |
| Advantages | Advantages | Advantages | Advantages |
| Real time indication of applied tension force | |||
| Variable tension speed | |||
| Favorite strapping function | |||
| Display color indication for too status information | |||
| Strap alignment indication | |||
| Strap dust blow out vent | |||
| Battery protection | |||
